Smart Spaces: AI-Powered Parking Lot Detection for Urban Mobility
Introduction
In rapidly growing urban centers, the perennial quest for parking spaces has become a daily frustration for millions. Drivers spend significant time circling blocks, contributing to traffic congestion, increased fuel consumption, and higher carbon emissions. Beyond the individual inconvenience, inefficient parking management impacts urban planning, revenue generation for parking operators, and the overall quality of city life. Traditional parking systems, often relying on rudimentary sensors or manual observation, lack the real-time accuracy and scalability needed to address these complex urban challenges effectively.
Artificial Intelligence, particularly through advanced computer vision and real-time object detection techniques, is paving the way for a revolutionary approach to urban mobility. By enabling autonomous, precise, and instantaneous monitoring of parking space occupancy, AI-powered parking lot detection promises to transform urban mobility, reduce congestion, and create smarter, more efficient cities. This blog post explores our cutting-edge AI model designed for accurate parking lot detection, highlighting its technical capabilities, profound urban benefits, diverse applications, and the significant impact it promises for optimizing urban spaces.
1. The Critical Need for Automated Parking Lot Detection
The urgency for efficient and accurate parking lot detection stems from several critical factors, directly impacting urban efficiency, environmental sustainability, and economic vitality:
Combating Urban Congestion: A significant portion of urban traffic is generated by drivers searching for parking. Automated detection provides real-time information on available spots, guiding drivers directly to empty spaces and drastically reducing cruising time, thereby alleviating traffic jams.
Reducing Environmental Impact: Less time spent searching for parking means reduced fuel consumption and lower greenhouse gas emissions. Smart parking solutions contribute directly to cleaner air and more sustainable urban environments.
Optimizing Revenue and Management: For parking facility owners and municipalities, precise occupancy data is crucial for dynamic pricing strategies, optimizing space utilization, and ensuring accurate billing. This maximizes revenue and improves operational efficiency.
Enhancing User Experience: Drivers benefit from reduced stress, wasted time, and frustration associated with finding parking. Real-time guidance to available spots transforms the parking experience from a chore into a seamless part of their journey.
Informing Urban Planning: Aggregated data from intelligent parking systems provides invaluable insights into parking demand patterns, utilization rates, and traffic flow, guiding urban planners in designing more effective infrastructure and mobility solutions.
By addressing these multifaceted challenges, AI-powered parking lot detection is not merely a technological upgrade; it’s a fundamental shift towards smarter, more sustainable, and user-friendly urban environments.
2. Benefits of AI in Parking Lot Detection
AI-powered parking lot detection systems offer a multitude of transformative benefits that are reshaping urban mobility and infrastructure management:
Real-Time Occupancy Data: AI algorithms analyze camera feeds instantaneously, providing up-to-the-second information on the occupancy status of individual parking spots. This real-time accuracy is critical for guiding drivers effectively.
Enhanced Accuracy and Reliability: Unlike traditional ground sensors, AI vision systems are less susceptible to environmental factors like snow, debris, or sensor malfunction. They provide highly consistent and precise detection of vehicle presence or absence.
Scalability Across Diverse Environments: AI models can be deployed across various parking environments, from multi-story garages to open-air lots and on-street parking, adapting to different layouts, lighting conditions, and camera angles with high performance.
Cost-Effective Deployment and Maintenance: Vision-based AI systems can monitor multiple parking spots from a single camera, reducing the need for costly individual ground sensors per spot. This simplifies installation and minimizes ongoing maintenance.
Data-Driven Insights for Optimization: AI generates rich datasets on parking patterns, peak hours, average occupancy, and vehicle types. This data is invaluable for dynamic pricing, optimizing staff deployment, and informing future infrastructure investments.
Integration with Smart City Ecosystems: Seamlessly connects with smart city platforms, traffic management systems, and navigation apps, creating a holistic approach to urban mobility and resource management.
3. Data Preparation for Robust AI
The success of our parking lot detection model is directly attributable to the meticulous preparation of a diverse and high-quality dataset. This process involved collecting and annotating vast quantities of parking lot imagery, encompassing a wide range of scenarios and operational conditions. Key aspects of our data preparation strategy included:
Diverse Parking Environments: The dataset included images from various types of parking lots – multi-story indoor garages, sprawling outdoor surface lots, and on-street parking — ensuring the model’s adaptability.
Varying Lighting and Weather Conditions: Images were captured under diverse lighting (daylight, night with artificial illumination, shadows, glare) and weather (sunny, overcast, rain, snow) to ensure robust performance irrespective of environmental factors.
Different Vehicle Types and Sizes: The dataset featured a wide array of vehicles, from compact cars to SUVs, trucks, and motorcycles, in various orientations and positions within parking bays, to ensure accurate detection across vehicle types.
Occlusion and Obstruction Scenarios: Images included instances of partial occlusion (e.g., vehicles partially hidden by pillars, trees, or other cars) to train the model to infer occupancy even with partial visual information.
High-Resolution and Diverse Camera Angles: Footage from various camera heights and angles (e.g., overhead, angled, ground level) was used to train the model to perform reliably across different surveillance setups.
Precise Annotation: Each parking space was meticulously annotated, along with the presence or absence of a vehicle within it, providing accurate ground truth for training the object detection and classification capabilities.
Model Architecture
The foundation of our advanced parking lot detection system is the YOLOv9m architecture. YOLO (You Only Look Once) is a leading real-time object detection model renowned for its speed and efficiency, making it an ideal choice for continuous monitoring of dynamic parking environments. The YOLOv9m variant provides an optimal balance between high detection accuracy and rapid inference speed, which is crucial for delivering real-time parking availability.
Key advantages of YOLOv9m in the context of parking lot detection include:
Real-Time Occupancy Classification: YOLOv9m’s highly optimized design allows for extremely fast analysis of live video streams, enabling near-instantaneous determination of whether a parking spot is occupied or empty.
Accurate Vehicle Detection and Classification: The model can precisely identify and classify various types of vehicles within parking spaces, contributing to accurate occupancy status.
Robustness to Challenging Conditions: Its sophisticated deep learning layers are highly effective at extracting intricate features from images affected by varying light conditions, shadows, or glare, ensuring reliable detection across diverse operational environments.
Efficient Processing of Multiple Spots: YOLOv9m can simultaneously analyze numerous parking spots within a single camera’s view, providing comprehensive occupancy data for large areas with minimal computational resources.
Training Parameters
The model underwent extensive training to optimize its performance across the diverse dataset. The key training parameters were carefully selected to ensure stability, rapid convergence, and robust generalization to new, unseen parking scenarios:
Parameter |
Value |
Description |
|---|---|---|
Base Model |
YOLOv9m |
The foundational deep learning architecture employed for the task, known for its efficiency and accuracy in real-time object detection. |
Batch Size |
8 |
Number of samples processed before the model’s internal parameters are updated, balancing training stability and computational efficiency. |
Learning Rate |
0.0005 |
Controls the step size during the optimization process, a conservative rate chosen for stable convergence and fine-tuning. |
Epochs |
70 |
Number of complete passes through the entire training dataset, ensuring the model learns extensively from the data and generalizes well. |
Optimizer |
AdamW |
An adaptive learning rate optimization algorithm (Adam with decoupled weight decay) known for its efficiency and strong performance in deep learning tasks. |
Inference Time |
~0.4s |
The average time taken for the trained model to process a single image frame and output parking spot occupancy status. |
Model Evaluation
Our rigorous training and validation processes have yielded a model with robust capabilities for parking lot detection. The evaluation metrics below demonstrate the model’s high precision, strong recall, and overall detection accuracy, proving its reliability for critical smart parking applications.
Metric |
Overall Performance |
Occupied Spots |
Empty Spots |
|---|---|---|---|
Precision |
0.94 |
0.95 |
0.93 |
Recall |
0.86 |
0.88 |
0.85 |
F1 Score |
0.90 |
0.91 |
0.89 |
mAP |
0.89 |
0.90 |
0.87 |
Inference Time |
~0.4s |
- |
- |
Precision (0.94 Overall): This exceptionally high precision indicates that when our model identifies a spot as occupied or empty, it is correct 94% of the time, minimizing misinformation to drivers and ensuring efficient parking guidance.
Recall (0.86 Overall): With a strong recall of 86%, the model successfully identifies most of the actual occupied and empty spots within a parking lot. This is crucial for ensuring comprehensive and accurate real-time availability.
F1 Score (0.90 Overall): The F1 Score, a harmonic mean of precision and recall, provides a balanced measure of the model’s overall accuracy, reflecting its robust performance in both identifying and correctly classifying parking spot statuses.
Mean Average Precision (mAP) (0.89 Overall): As a comprehensive metric for object detection tasks, mAP of 0.89 signifies strong overall performance across both “Occupied” and “Empty” classes, indicating high accuracy and reliability in dynamic parking environments.
Inference Time (~0.4s): The sub-second inference time ensures that parking spot occupancy data can be generated in near real-time, making the system highly practical for integration with live parking guidance systems and mobile applications.
The per-category metrics further highlight the model’s optimized performance: “Occupied Spots” exhibit higher precision, ensuring drivers aren’t directed to falsely empty spaces, while “Empty Spots” maintain strong recall, ensuring that available spaces are reliably identified.

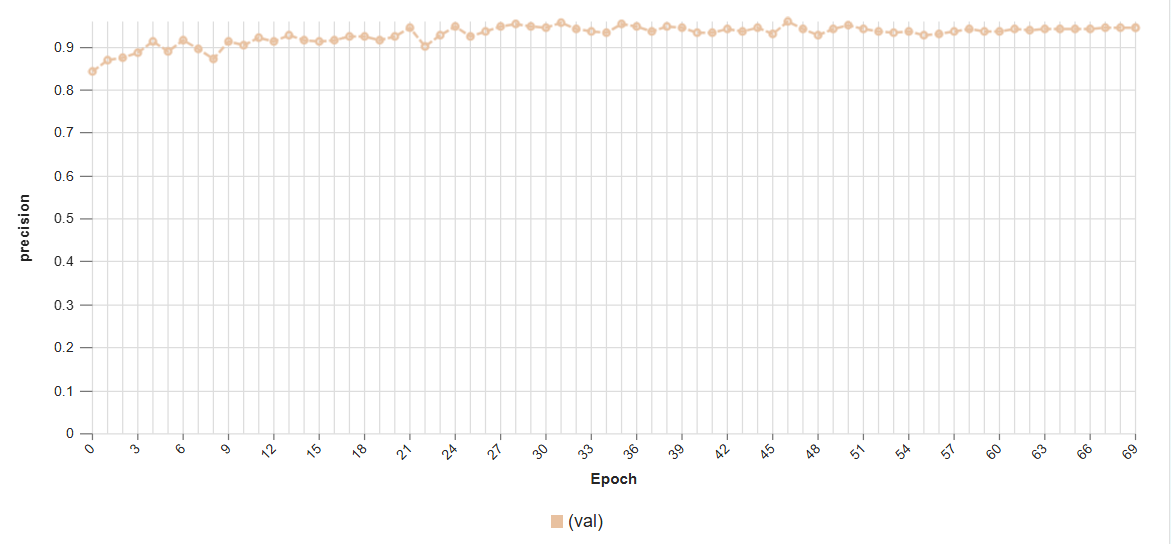

Epoch vs. Precision during Training
To demonstrate the training dynamics and performance stability of our model, the following graph illustrates the progression of precision over epochs. This visualization highlights how the model refined its accuracy during the training process, converging to a high level of precision.
This graph shows the increase in model precision as training progresses over multiple epochs, demonstrating the learning curve and stability of the YOLOv9m architecture.
Model Inference Examples
Below are conceptual examples demonstrating the model’s output when analyzing parking lot images for occupancy detection. The AI accurately identifies occupied and empty spots, often highlighting them with color-coded overlays.
Example 1: Real-time Parking Spot Occupancy Detection
This image showcases our AI model in action, accurately identifying and classifying parking spots as either occupied (e.g., highlighted in red) or empty (e.g., highlighted in green), providing clear visual cues for real-time management.
4. Real-World Applications and Societal Impact
The deployment of this AI-powered parking lot detection system is poised to create a profound impact across various urban and commercial sectors:
Smart Parking Guidance Systems: Integrates with mobile apps and digital signage to guide drivers directly to available parking spots, significantly reducing search time and frustration.
Dynamic Parking Pricing: Enables parking operators to implement variable pricing based on real-time demand, maximizing revenue during peak hours and encouraging off-peak utilization.
Traffic Flow Management: By reducing cruising for parking, the system contributes to smoother urban traffic flow, decreasing congestion and improving overall city mobility.
Parking Enforcement and Monitoring: Automatically identifies illegally parked vehicles or those exceeding time limits, enhancing enforcement efficiency and compliance.
Urban Planning and Development: Provides invaluable data for city planners to understand parking demand patterns, optimize infrastructure design, and make data-driven decisions for future urban development.
Enhanced Customer Experience: For shopping malls, airports, and event venues, smart parking systems offer a superior experience for visitors, reducing stress and improving satisfaction.
5. Future Directions in AI-Powered Parking Lot Detection
Our commitment to innovation ensures continuous development and enhancement of our AI capabilities in smart parking solutions. Future efforts will focus on:
Predictive Parking Availability: Developing models that can forecast parking availability based on historical data, events, and real-time traffic conditions, enabling drivers to plan their trips even more effectively.
Integration with Autonomous Driving: Providing real-time, highly granular parking data to autonomous vehicles, enabling them to locate and navigate to available spots independently.
Multi-Modal Sensor Fusion: Combining vision-based AI with data from other sensors like ultrasonic, magnetic, or LiDAR for even greater accuracy and robustness in challenging environments.
Electric Vehicle Charging Spot Management: Specialized detection for EV charging stations, indicating not just occupancy but also charging status and availability for charging.
Dynamic Capacity Management: AI-driven systems that can dynamically reconfigure parking zones or optimize flow within complex parking structures based on real-time demand.
Conclusion
AI-powered parking lot detection represents a transformative leap forward in urban mobility and infrastructure management. By delivering unparalleled accuracy, real-time insights, and a data-driven approach, our solution empowers cities, businesses, and drivers to experience more efficient, sustainable, and stress-free parking. This not only translates to reduced traffic congestion and environmental benefits but, more critically, to enhanced quality of life and optimized resource utilization in our increasingly urbanized world. As we continue to refine and expand these capabilities, the future promises an even smarter, more connected, and seamlessly navigable urban landscape.
